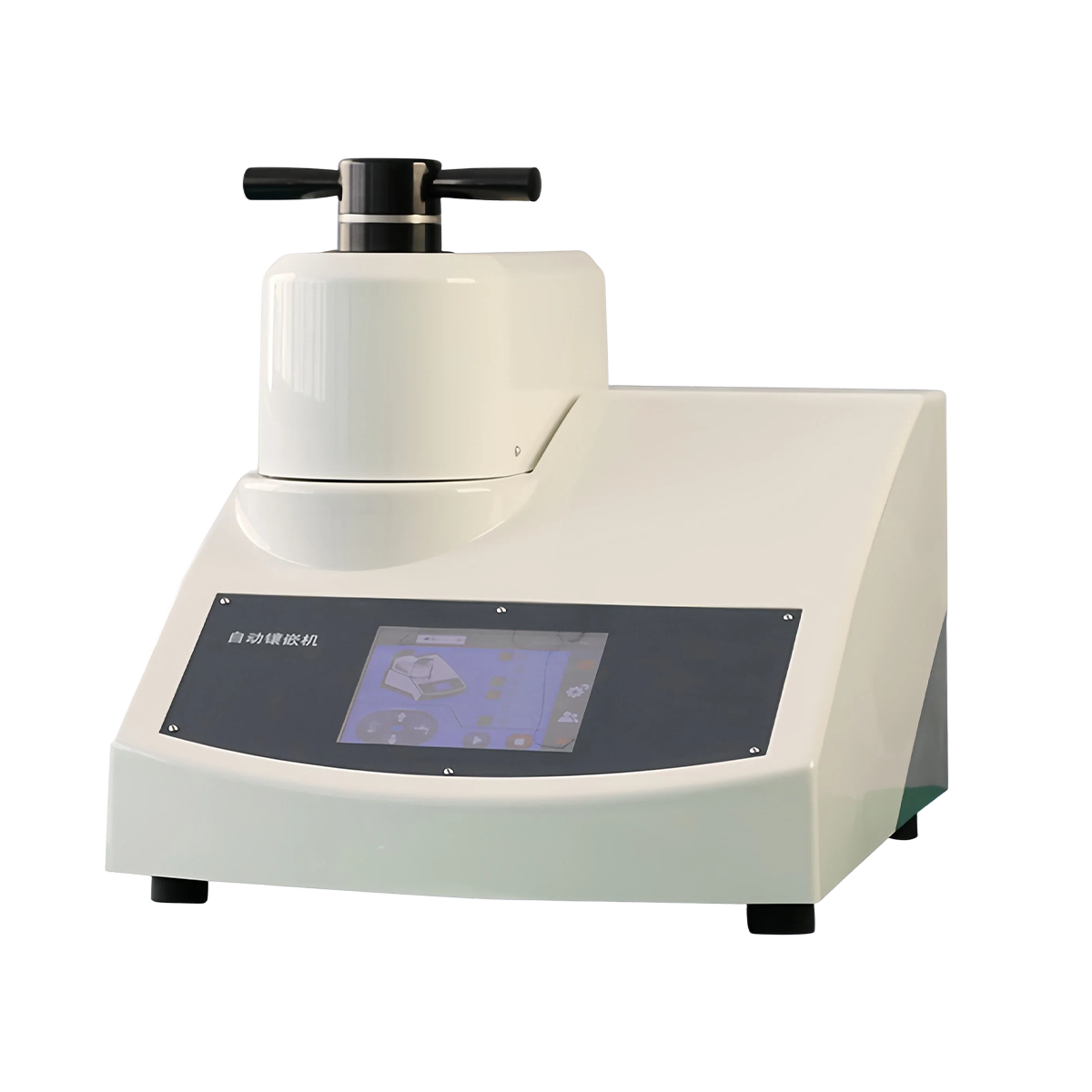

Automatic Mounting Press HC-300
High-efficiency automatic hot mounting press with touch control, fast heating & cooling, precise pressure control, for consistent high-quality metallographic sample mounting.
The Automatic Metallographic Mounting Press HC-300 is a fully automatic hot mounting machine designed for efficient and high-quality metallographic sample preparation. It adopts an electric-hydraulic system for accurate pressure control, suitable for brittle and delicate samples. With intuitive touch-screen operation, one‑key start, real-time temperature and pressure display, and countdown timer, the machine ensures stable and repeatable mounting results. It supports dual‑sample mounting in just 6 minutes, greatly improving laboratory efficiency.
2. Key Selling Points
- Fast mounting unit: dual samples in only 6 minutes, high efficiency
- Mounting unit separated from control system for easy cleaning and maintenance
- Intuitive touch screen for easy parameter setting and real-time status display
- Electric-hydraulic system provides precise and stable pressure control
- Preheating function reduces heating time for continuous operation
- Three mounting modes to fit different materials and sample types
- Full-pressure mode at start, suitable for 90% of hot mounting applications
- Linear pressurization after temperature ready for seamless embedding
- Supports Chinese/English language switching and adjustable brightness
- Stores up to 25 custom mounting methods
- Compact structure, stable performance, long service life
3. Technical Parameters
| Item | Specification |
|---|---|
| Mold diameter | 25mm, 30mm, 40mm, 50mm |
| Temperature range | 100–200°C adjustable |
| Pressure range | 0–4MPa adjustable |
| Heating time | 3–15min |
| Cooling mode | Tap water cooling |
| Cooling time | 3–15min |
| Working voltage | 200–250V, 50/60Hz |
| Max power | 4kW |
| Standby power | 7W |
| Noise | Max 40dB |
| Operating temp | 0–40°C |
| Operating humidity | 0–85% |
| Dimensions (L×W×H) | 500×580×520mm |
| Weight | 50kg |
4. Applicable Materials
Steel, cast iron, stainless steel, aluminum alloy, copper alloy, titanium alloy, cemented carbide, castings, forgings, welded parts, composite materials, ceramics, electronic components, brittle materials, and various metallographic samples for hot mounting.
5. Standard Configuration
| No. | Configuration Content |
|---|---|
| 1 | HC-300 main machine |
| 2 | Touch screen control system |
| 3 | Electric-hydraulic pressure system |
| 4 | Single-cylinder mounting chamber |
| 5 | Heating system |
| 6 | Water cooling connector |
| 7 | Power cable |
| 8 | Operation manual |
6. Optional Accessories
- Mold sets (φ25 / 30 / 40 / 50mm)
- Hot mounting resins (standard, conductive, edge-preserving, transparent)
- Circulating cooling water tank
- Sample release agent
- Custom mold for special samples
7. Application Cases
- Automatic batch mounting for automotive parts, gears, bearings
- Metallographic sample preparation in aerospace and machinery industries
- Quality control and inspection in metal processing factories
- Material research and laboratory testing in universities and research institutes
- Brittle and precision components requiring high-quality mounting
