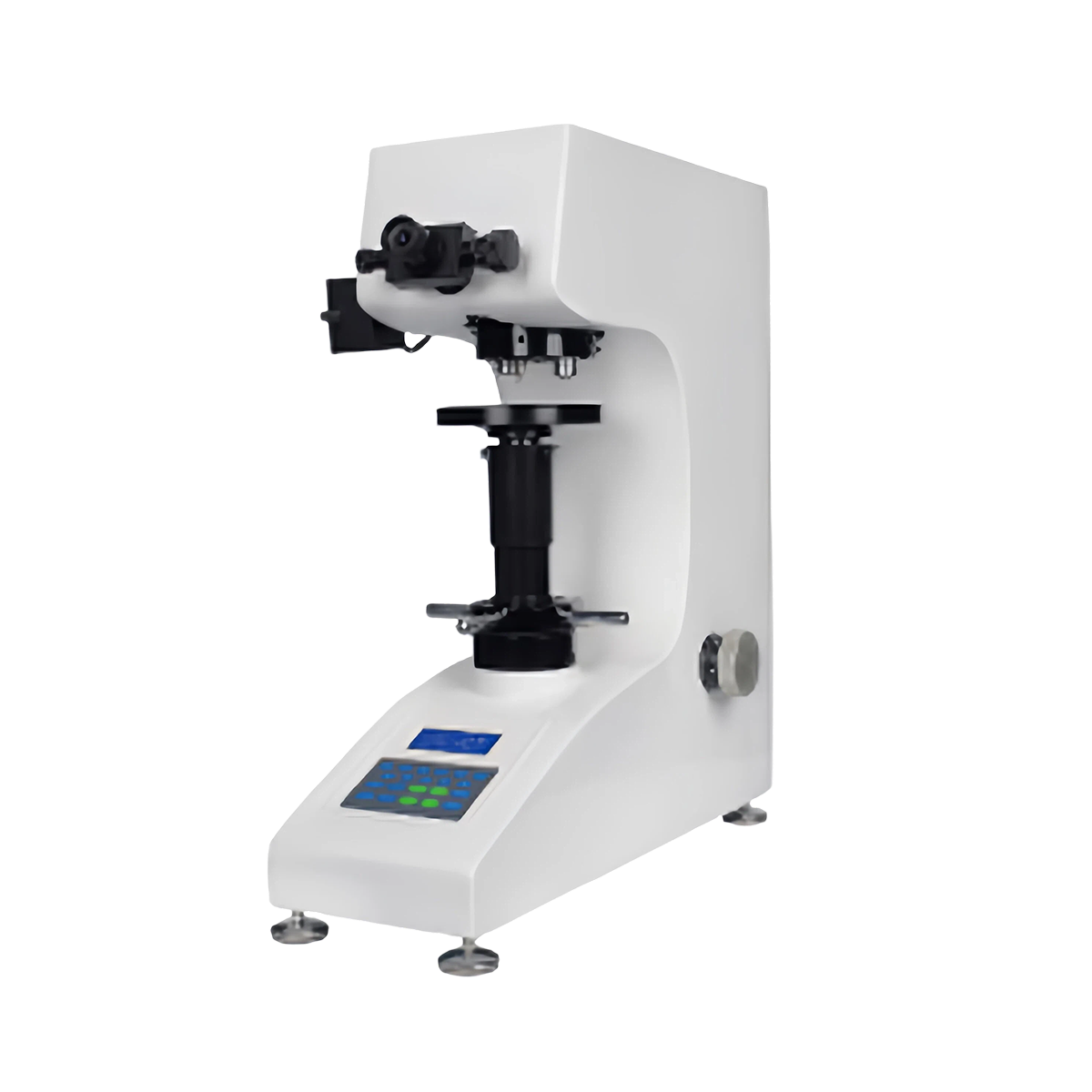

Automatic Turret Digital Vickers Hardness Tester HVS-5Z
Manual load Vickers hardness tester with automatic turret, clear optical system, stable and reliable, for micro-hardness testing of thin materials, coatings and small precision parts.
The HV-5Z is a mechanical loading Vickers hardness tester equipped with an automatic turret for fast switching between indenter and objective lens. It uses high-precision weight-loading system to ensure accurate test force and good repeatability. The high-definition optical microscope provides clear indentation observation and measurement. With compact structure and simple operation, it is widely used in laboratories, workshops and quality inspection for thin materials, surface coatings, electronic components and various metal alloys.
2. Key Selling Points
- Automatic turret for fast switching between indenter and objective lens
- Mechanical weight loading, high accuracy and stable performance
- High-definition optical system for clear indentation reading
- Simple operation, no complicated settings required
- Durable structure, low failure rate, long service life
- Compact size, suitable for laboratory and workshop use
- Good repeatability for daily inspection and batch testing
- Economical and practical for general hardness testing
3. Technical Parameters
| Item | Specification |
|---|---|
| Test force | 1kgf, 2kgf, 3kgf, 5kgf |
| Hardness range | 5–3000 HV |
| Optical magnification | 100× (observation), 200× (measurement) |
| Reading resolution | 0.5 μm |
| Dwell time | 5–60s adjustable |
| Max sample height | 160 mm |
| Distance from indenter to wall | 110 mm |
| Loading mode | Mechanical weight loading |
| Dimensions | 450×280×490 mm |
| Net weight | 33 kg |
| Standards | GB/T 4340, ISO 6507, ASTM E92 |
4. Applicable Materials
Carburized layer, nitrided layer, plating and coating layers, thin steel sheet, stainless steel, copper alloy, aluminum alloy, titanium alloy, tool steel, cemented carbide, ceramics, electronic components, small precision parts, watch parts.
5. Standard Configuration
| No. | Configuration Content |
|---|---|
| 1 | HV-5Z main unit |
| 2 | Automatic turret mechanism |
| 3 | Vickers indenter |
| 4 | Objective lens set (10×, 20×) |
| 5 | Standard flat anvil |
| 6 | Adjustment tools |
| 7 | Operation manual & factory certificate |
6. Optional Accessories
- V-type anvil for cylindrical samples
- Thin sample / wire fixture
- Standard Vickers hardness block
- LED external light source
- Digital micrometer eyepiece
7. Application Cases
- Micro-hardness test for surface coatings and plating layers
- Hardness inspection of heat-treated thin workpieces
- Small precision parts and electronic components testing
- Factory workshop daily quality control
- Material analysis and laboratory teaching
