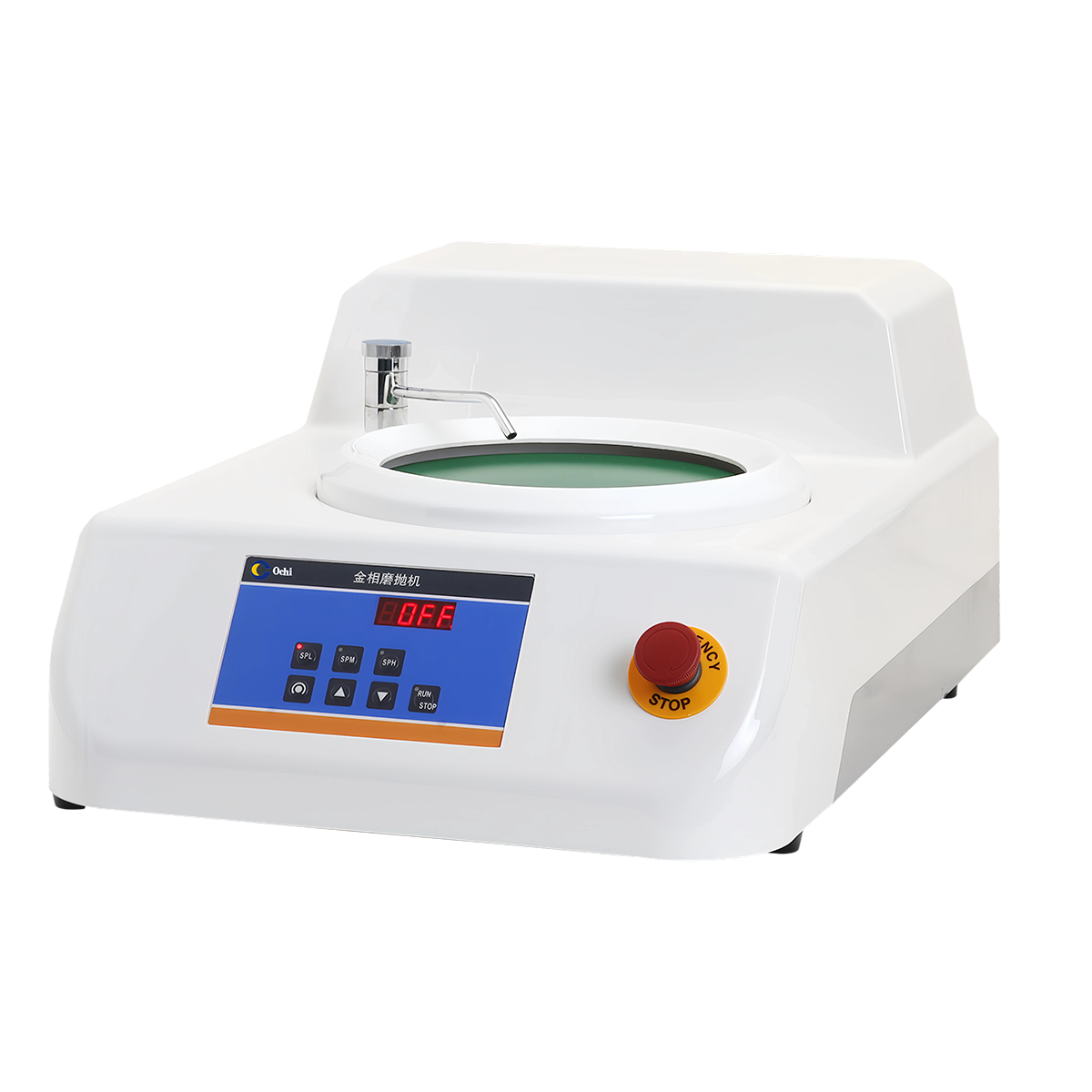

Metallographic Grinding & Polishing Machine PC-10
Compact single-disc grinding and polishing machine with stable performance, stepless speed, 3 fixed speeds, and eco-friendly plastic body for daily metallographic sample preparation.
The PC-10 is a reliable single-disc single-control grinding and polishing machine designed for laboratory metallographic sample preparation. It features an integrated environmental protection engineering plastic casing, stable rotation, low noise, and a conical disc system for fast disc replacement. The machine supports stepless speed regulation and three customizable fixed speeds, enabling easy switching between grinding and polishing. With a large-diameter anti-clogging drain pipe and adjustable water flow, it provides consistent and efficient preparation for various metal samples.
2. Key Selling Points
- Integrated environmental engineering plastic body, smooth, durable and easy to clean.
- Conical disc system for quick replacement and simple maintenance.
- Large-diameter drain pipe to prevent clogging.
- Stable chassis rotation with low vibration and low noise.
- Stepless speed adjustment for precise speed control.
- Three fixed speeds for quick access to common working speeds.
- One-key switching between grinding and polishing modes.
- Adjustable water flow for better grinding and polishing performance.
- Compact structure, space-saving and suitable for all laboratories.
- Simple button operation, easy to learn and use.
3. Technical Parameters
| Item | Specification |
|---|---|
| Working disc diameter | 200mm / 230mm |
| Speed range | 100–1000 r/min |
| Three fixed speeds | S1=300r/min, S2=500r/min, S3=800r/min (customizable) |
| Rotation direction | Clockwise / Counterclockwise adjustable |
| Motor power | 750W |
| Voltage / Frequency | AC220V 50Hz |
| Emergency stop | Emergency stop button |
| Water pressure | 1–10 bar / 0.1–1 MPa |
| Inlet pipe | Φ8 mm, length 2 m |
| Drain pipe | Inner diameter Φ40 mm |
| Operation panel | Mechanical buttons |
| Operating temperature | 5–40 °C |
| Operating humidity | 0–95% RH |
| Dimensions (L×W×H) | 650×475×450 mm |
| Weight | Standard |
4. Applicable Materials
Steel, stainless steel, cast iron, aluminum alloy, copper alloy, titanium alloy, cemented carbide, castings, forgings, welded parts, composite materials, coatings, electronic materials, PCB and other conventional metallographic samples.
5. Standard Configuration
| No. | Configuration Content |
|---|---|
| 1 | 1 set of PC-10 main machine |
| 2 | 1 piece of working disc (200mm or 230mm) |
| 3 | 1 set of control panel |
| 4 | 1 set of conical disc system |
| 5 | 1 set of water supply & drainage system |
| 6 | 1 set of emergency stop button |
| 7 | 1 set of power cable |
6. Optional Accessories
- Metallographic abrasive papers (various grits)
- Polishing cloths (flannel, nylon, suede, silk, damping cloth, etc.)
- Diamond spray, suspension, polishing paste
- Alumina / silica polishing solution
- Magnetic support disc & adhesive disc
- Sample holders & clamps
7. Application Cases
- Daily metallographic sample preparation for automotive parts, fasteners, gears
- Metal material grinding and polishing for machining factories
- Welded parts and heat treatment sample analysis
- University laboratory teaching and material research
- Small-batch sample preparation for quality inspection departments
