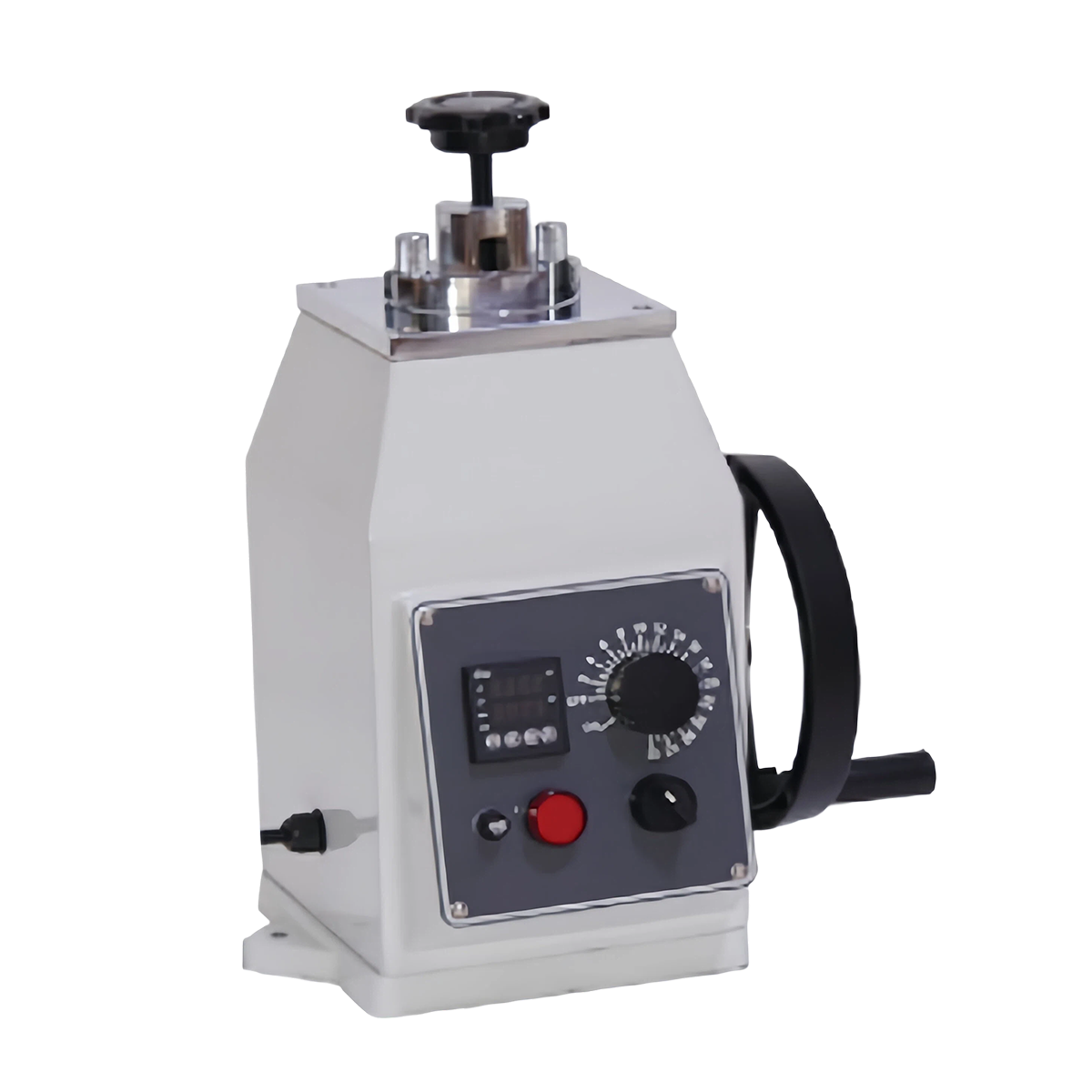

Manual Mounting Press HC-2B
Compact and durable manual hot mounting press with simple operation, stable heating and pressure, ideal for small-batch metallographic sample mounting.
The Manual Metallographic Mounting Press HC-2B is a economical and practical hot mounting machine for laboratory metallographic sample preparation. It adopts manual pressure adjustment, electric heating, and water cooling, with simple structure, stable performance and easy maintenance. Suitable for small-batch mounting of various metal samples, it is widely used in laboratories, factories, schools and research institutes for daily sample preparation.
2. Key Selling Points
- Compact structure, small footprint, space-saving.
- Full manual operation, simple and easy to learn.
- Stable heating system with uniform temperature distribution.
- Manual pressure control, stable and reliable.
- Water cooling for fast and effective cooling.
- Sturdy and durable, low failure rate, long service life.
- Economical cost, suitable for daily small-batch mounting.
- Wide compatibility with various hot mounting resins.
3. Technical Parameters
| Item | Specification |
|---|---|
| Mold diameter | φ25mm, φ30mm, φ40mm (optional) |
| Temperature range | 50–180℃ adjustable |
| Pressure mode | Manual pressurization |
| Cooling mode | Water cooling |
| Working voltage | AC220V 50Hz |
| Power | 1.6kW |
| Dimensions (L×W×H) | 410×350×420mm |
| Weight | 30kg |
4. Applicable Materials
Steel, cast iron, aluminum alloy, copper alloy, stainless steel, welded parts, castings, forgings, electronic components and various conventional metallographic samples for hot mounting.
5. Standard Configuration
| No. | Configuration Content |
|---|---|
| 1 | HC-2B main unit |
| 2 | Standard mold (φ25mm or φ30mm) |
| 3 | Heating plate |
| 4 | Manual pressure handle |
| 5 | Water cooling connector |
| 6 | Power cable |
| 7 | Operation manual |
6. Optional Accessories
- φ25 / 30 / 40mm mold sets
- Hot mounting resin
- Release agent
- Cleaning tools
7. Application Cases
- Small-batch sample mounting in laboratory testing
- Daily metallographic sample preparation in small and medium-sized factories
- Teaching and training in colleges and vocational schools
- Preliminary sample mounting for material research
- On-site quality inspection and sample processing
