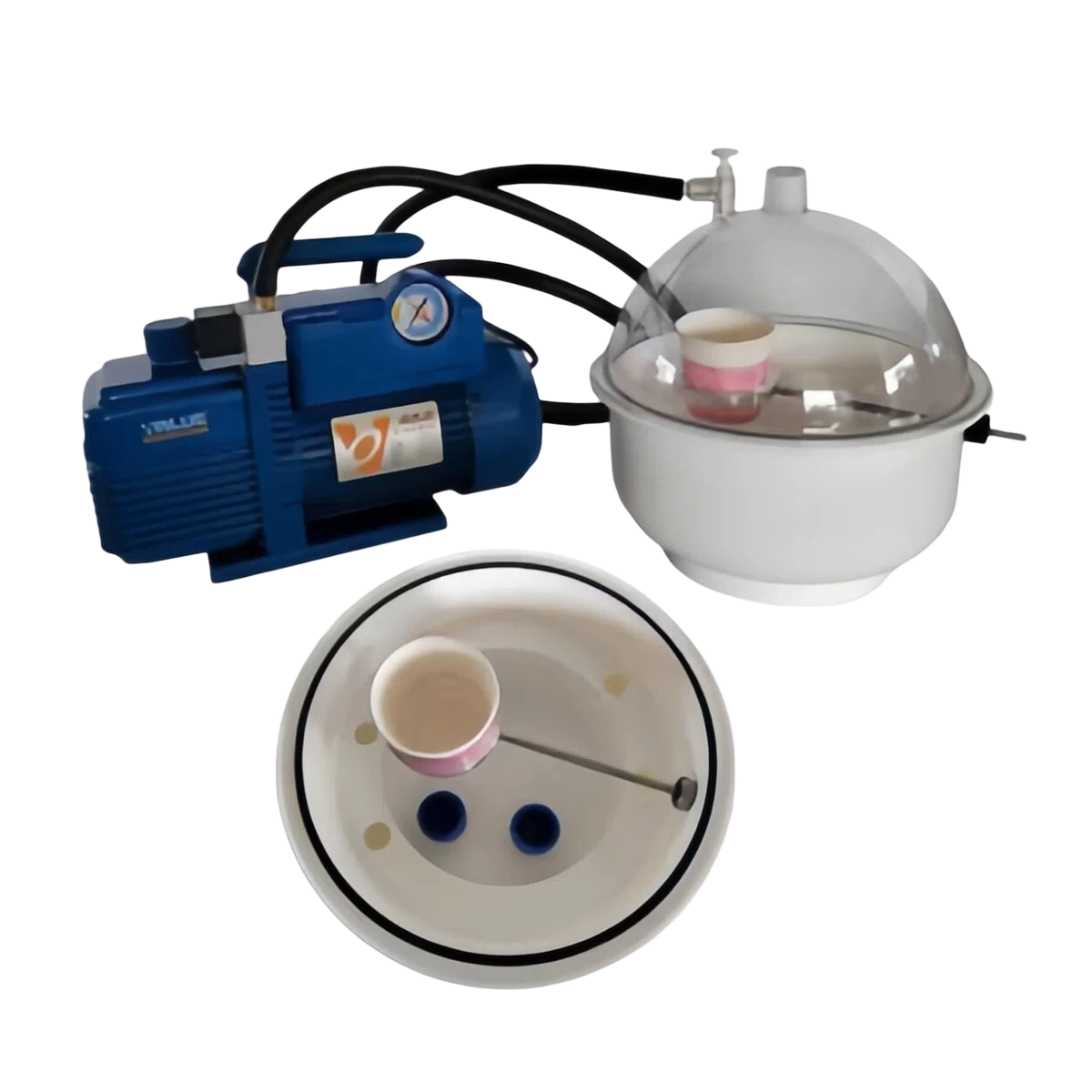

Vacuum Cold Mounting Machine OC-3000VM
Professional vacuum cold mounting system for removing air bubbles, filling voids, and achieving gap-free embedding of porous, tiny, and delicate samples.
The Vacuum Mounting Press OC-VM3000 is a dedicated vacuum cold mounting machine designed for high-quality metallographic sample embedding. By applying vacuum to the sample and mounting resin, it effectively removes air inside porous samples and resin, ensuring full resin penetration into sample cavities and zero gaps between sample and mounting material. The machine is compact, fast, easy to operate, and ideal for porous materials, tiny components, fragile samples, and PCB applications.
2. Key Selling Points
- Vacuum system removes air from samples and mounting resin for bubble-free results.
- Eliminates gaps between sample and mounting material for perfect edge retention.
- Fills cavities and micro-holes inside samples completely.
- Compact structure, small footprint, suitable for laboratory use.
- Fast and simple operation, high mounting efficiency.
- Can mount multiple samples at the same time to improve throughput.
- Ideal for porous materials, tiny parts, fragile and heat-sensitive samples.
- Stable vacuum performance ensures consistent mounting quality.
3. Technical Parameters
| Item | Specification |
|---|---|
| Mold size | Diameter 30mm (soft mold); 40mm, 50mm optional |
| Vacuum pump | Max vacuum: -0.1 MPa; Pumping speed: 7.2 m³/h |
| Input power | Single-phase 220V, 50/60Hz, 370W |
| Max sample capacity | Up to 10 pcs (φ30mm) |
| Vacuum container dimension | 300(L)×300(W)×300(H) mm |
| Vacuum pump dimension | 340(L)×130(W)×270(H) mm |
| Weight | Vacuum vessel: 1.15 kg; Vacuum pump: 11.5 kg |
| Application | Cold mounting under vacuum environment |
4. Applicable Materials
Porous metals, castings, coatings, PCB samples, electronic components, tiny parts, fragile materials, heat-sensitive samples, composite materials, plastics, and samples requiring gap-free embedding.
5. Standard Configuration
| No. | Configuration Content |
|---|---|
| 1 | 1 set of OC-VM3000 main unit |
| 2 | 1 set of vacuum pump |
| 3 | 1 set of vacuum container |
| 4 | 1 set of vacuum hose |
| 5 | 1 set of power cable |
| 6 | 1 set of operation manual |
6. Optional Accessories
- φ30 / φ40 / φ50mm silicone molds
- Disposable plastic mounting molds
- Cold mounting resin (clear, low-viscosity, low-heat)
- Sample clips
- Release agent
- Auxiliary fixtures for tiny samples
7. Application Cases
- Vacuum mounting of PCB and electronic components for metallographic analysis
- Porous casting samples to eliminate cavities and bubbles
- Tiny, fragile, and heat-sensitive precision parts
- Medical devices, micro-components, and thin-film materials
- Quality control and R&D laboratories requiring high-quality mounting
