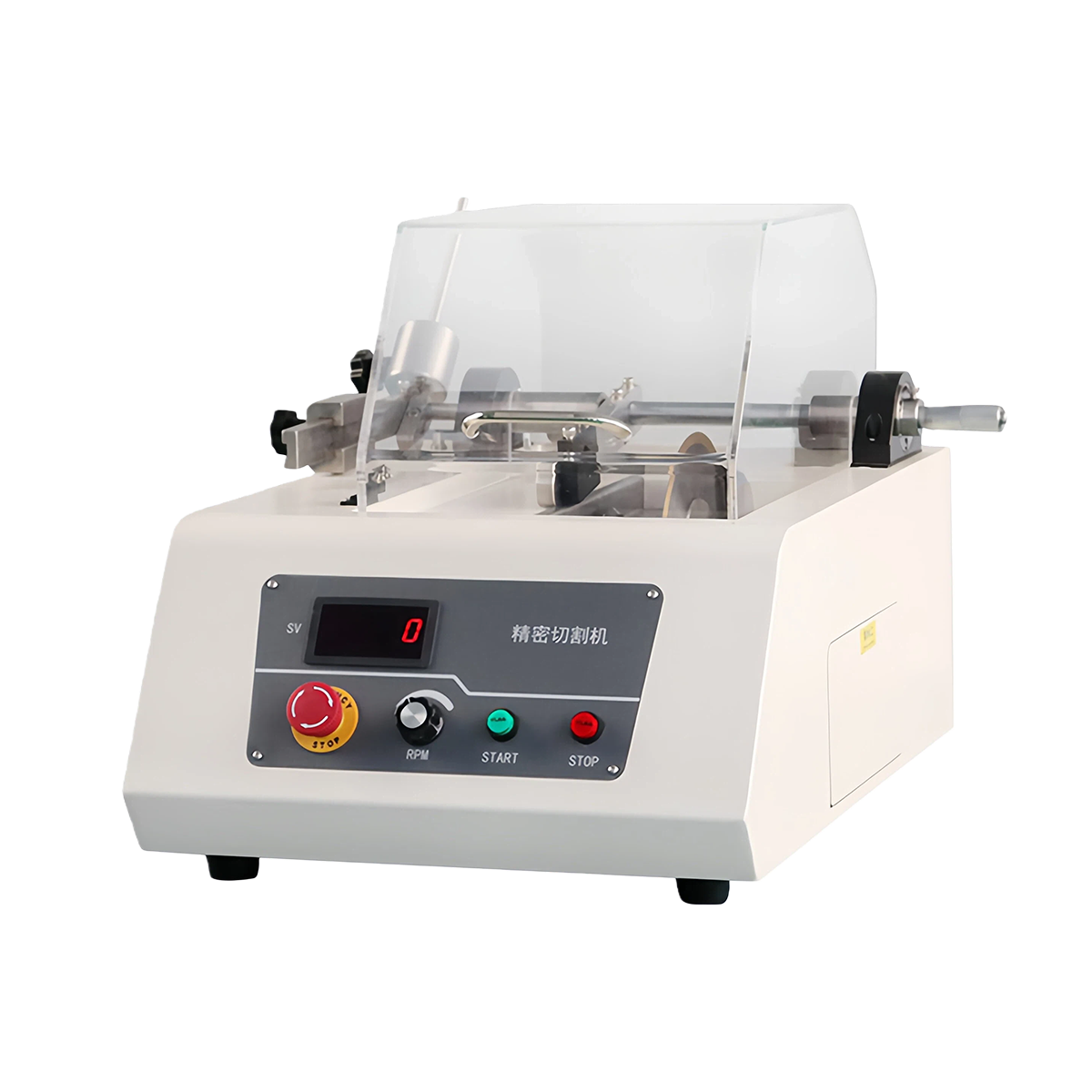

Medium-Low Speed Precision Cutting Machine LSC-150
This medium-low speed precision cutting machine provides safe, accurate and deformation-free cutting for metallographic samples. It is suitable for metals, alloys and various engineering materials. Stable structure, easy operation, ideal for laboratory sample preparation.
The LSC-150 is a professional medium and low speed precision cutting machine tailored for special metallographic samples that are prone to damage, cracking or thermal deformation under high-speed cutting. Unlike high-speed cutting models, this machine adopts an adjustable medium-low speed spindle system and a stable anti-shock integrated frame, providing gentle and controllable cutting force to effectively protect fragile, brittle, soft and heat-sensitive materials from damage during the cutting process.
Featuring a space-saving bench-top design, it fits perfectly in small laboratory spaces, precision testing rooms and material research labs. The fully enclosed transparent protective cover ensures operational safety while enabling real-time monitoring of the cutting process. Equipped with a stable manual feed system and circulating cooling function, it delivers flat, smooth and damage-free cutting sections, making it the ideal choice for precision preparation of special sensitive samples.
2. Key Selling Points
-
Adjustable Medium & Low Speed: Spindle speed adjustable in medium and low speed range, avoiding excessive impact and heat generated by high-speed cutting, specially suitable for fragile and brittle materials.
-
Anti-Shock Stable Structure: Heavy-duty integrated frame with effective shock absorption design, ensuring stable running with minimal vibration, preventing sample cracking and edge chipping during cutting.
-
Gentle Precision Feed: Smooth manual feed handle with fine adjustment function, allowing operators to control feed speed flexibly according to material hardness and sample characteristics.
-
Compact Bench-Top Size: Small footprint and lightweight body, easy to place on standard laboratory workbenches, suitable for limited lab space and small-batch sample preparation.
-
Effective Circulating Cooling: Built-in wet circulating cooling system with uniform water spraying, reducing cutting temperature in real time and completely eliminating thermal damage to heat-sensitive samples.
-
Comprehensive Safety Protection: Fully enclosed transparent explosion-proof protective cover, equipped with door opening power-off linkage, emergency stop button and overload protection, fully guaranteeing operator safety.
-
Anti-Corrosion & Easy Cleaning: Stainless steel working platform and inner cavity, resistant to cutting coolant corrosion, smooth surface for quick removal of cutting residues and easy daily maintenance.
-
Low Noise & Durable: Optimized motor and transmission structure, running noise is significantly reduced, with stable performance and long service life for long-term daily use.
3. Technical Parameters
|
Item
|
Specification
|
|---|---|
|
Maximum Cutting Capacity
|
Φ25 mm (round sample); 35×25 mm (rectangular sample)
|
|
Cutting Blade Specification
|
Φ150 × 1.0 × 20 mm (thin precision special blade)
|
|
Spindle Speed
|
800-2000 r/min (medium & low speed adjustable)
|
|
Motor Power
|
0.6 kW
|
|
Workbench Stroke
|
100 mm
|
|
Feed Mode
|
Manual fine adjustment feed
|
|
Cooling Method
|
Wet circulating cooling
|
|
Control Mode
|
Manual button + speed adjustment knob
|
|
Safety Devices
|
Enclosed protective cover, door opening shutdown, emergency stop, overload protection
|
|
Body Material
|
Integrated steel frame with stainless steel workbench
|
|
Power Supply
|
AC 220V 50Hz (universal laboratory voltage)
|
|
Overall Dimensions
|
Approx. 500×380×420 mm
|
|
Weight
|
Approx. 55 kg
|
4. Applicable Materials
-
Fragile & Brittle Materials: Ceramics, glass, crystals, cemented carbide, sintered materials, brittle alloys
-
Soft & Heat-Sensitive Materials: Non-ferrous soft metals (aluminum, copper, zinc alloys), plastics, rubber, composite materials, PCB micro-components
-
Precision Micro Samples: Small electronic parts, micro components, thin metal sheets, fasteners, tiny weldments
5. Standard Configuration
-
1 set of LSC-150 main machine
-
Medium-low speed adjustable spindle & motor assembly
-
Manual fine feed handle assembly
-
Standard sample clamping fixture
-
Circulating cooling water tank
-
Transparent enclosed protective cover
-
Emergency stop button assembly
-
Power cable
-
Operation manual & warranty card
6. Optional Accessories
-
Φ150mm medium-low speed special precision cutting blades
-
Micro sample special fixtures
-
Metallographic cutting coolant & anti-rust liquid
-
Mini precision vise
-
Spare sealing rings and vulnerable parts kit
7. Typical Applications
-
Precision cutting of fragile and brittle metallographic samples in material research laboratories
-
Sample preparation for soft and heat-sensitive materials in scientific research institutes
-
Micro sample cutting for electronic components and precision parts detection
-
Teaching and experimental sample preparation in university material science labs
-
Damage-free cutting for metallographic failure analysis and material testing
-
Small-batch precision sample preparation in industrial quality control rooms
