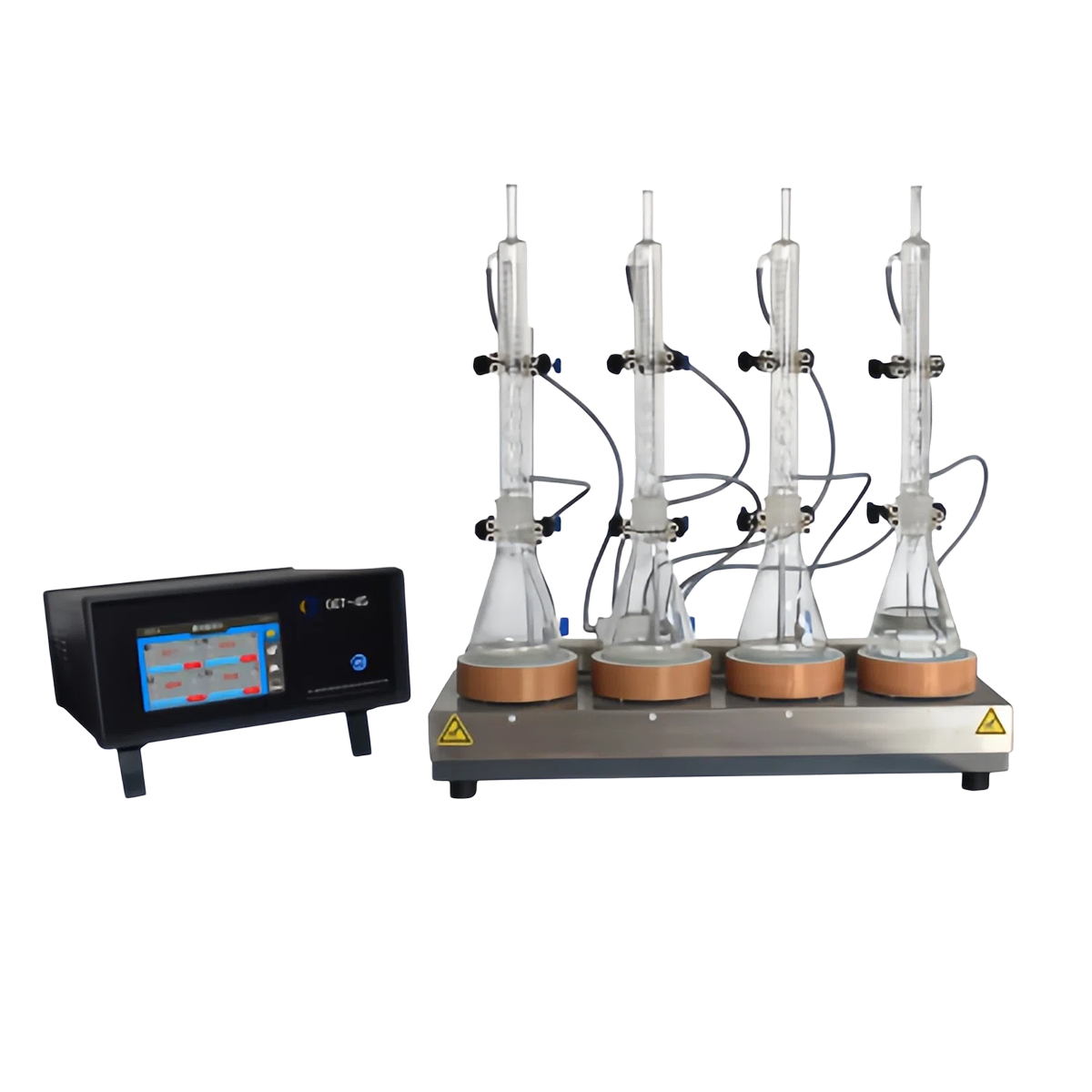

Intergranular Corrosion Tester OCI-4S
4-station independent control intergranular corrosion tester for stainless steel, alloy and metal materials, with touch screen, intelligent temperature control and full safety protection.
The Intergranular Corrosion Tester OCT-4S is a professional testing instrument used to detect intergranular corrosion resistance of stainless steel, duplex steel, alloy steel and other metal materials. It adopts 4-station independent control design, which can run 4 groups of tests at the same time to improve working efficiency. Equipped with a color touch screen, it supports multi-language operation and stores up to 100 groups of user-defined test methods. The instrument has complete safety protection functions including over-temperature protection, condensate water detection, leakage protection and optional liquid leakage sensor, ensuring safe and reliable operation. It is widely used in quality inspection, material research and production testing in petrochemical, boiler pressure vessel, aerospace and metallurgical industries.
2. Key Selling Points
- 4 independent working stations, can run 4 different tests simultaneously, high efficiency.
- Large touch screen operation, intuitive interface, supports multi-language switching.
- Built-in 100 groups of custom method database, convenient to store and call test parameters.
- High-precision temperature control system, temperature accuracy up to 0.1°C.
- Stainless steel workbench, corrosion resistant, easy to clean and maintain.
- Over-temperature protection and temperature sensor self-detection function.
- Condensate water sensor detection, automatic alarm and stop without water.
- Leakage and short circuit protection, ensure safe operation.
- Optional liquid leakage sensor, automatic stop and alarm when leakage occurs.
- Can connect circulating cooling water, save water and reduce cost.
- Can be used with fume hood, improve working environment safety.
3. Technical Parameters
| Item | Specification |
|---|---|
| Control mode | Touch screen control, support multi-language |
| Custom method storage | 100 groups |
| Temperature control range | 0–400°C |
| Temperature display accuracy | 0.1°C |
| Working stations | 4 independent stations |
| Heating plate power | Single 500W |
| Flask capacity | 1000mL, caliber 40mm |
| Condenser | Serpentine spherical, 550mm |
| Timing range | 0–999h 60min, countdown display |
| Total power | 2100W |
| Power supply | AC220V 50/60Hz |
| Working environment temperature | 5–30°C |
| Working environment humidity | ≤85%RH, non-condensing |
| Dimensions | 850×350×450mm |
| Weight | 42kg |
4. Applicable Materials
Stainless steel (austenitic, ferritic, duplex), alloy steel, nickel-based alloy, titanium alloy and other metal materials that require intergranular corrosion test.
5. Standard Configuration
| No. | Configuration Content |
|---|---|
| 1 | OCT-4S main unit 1 set |
| 2 | 4 heating stations |
| 3 | 4 pcs 1000mL flasks |
| 4 | 4 pcs serpentine condensers |
| 5 | Touch screen control panel |
| 6 | Condensate water detection sensor |
| 7 | Leakage and short circuit protection device |
| 8 | Stainless steel working table |
| 9 | Power cable |
| 10 | Operation manual |
6. Optional Accessories
- Liquid leakage sensor
- Circulating chiller
- Additional flasks and condensers
- Fume hood linkage module
- PC software and communication cable
- Calibration certificate
7. Application Cases
- Stainless steel pipe inspection: Intergranular corrosion test for stainless steel pipes used in petroleum, chemical and pressure vessel industries.
- Alloy material research: Used in material laboratories to evaluate corrosion resistance of new alloys.
- Production quality control: On-line detection for welded parts, forgings and heat-treated parts.
- Aerospace & military: Corrosion performance test for high-performance alloy components.
