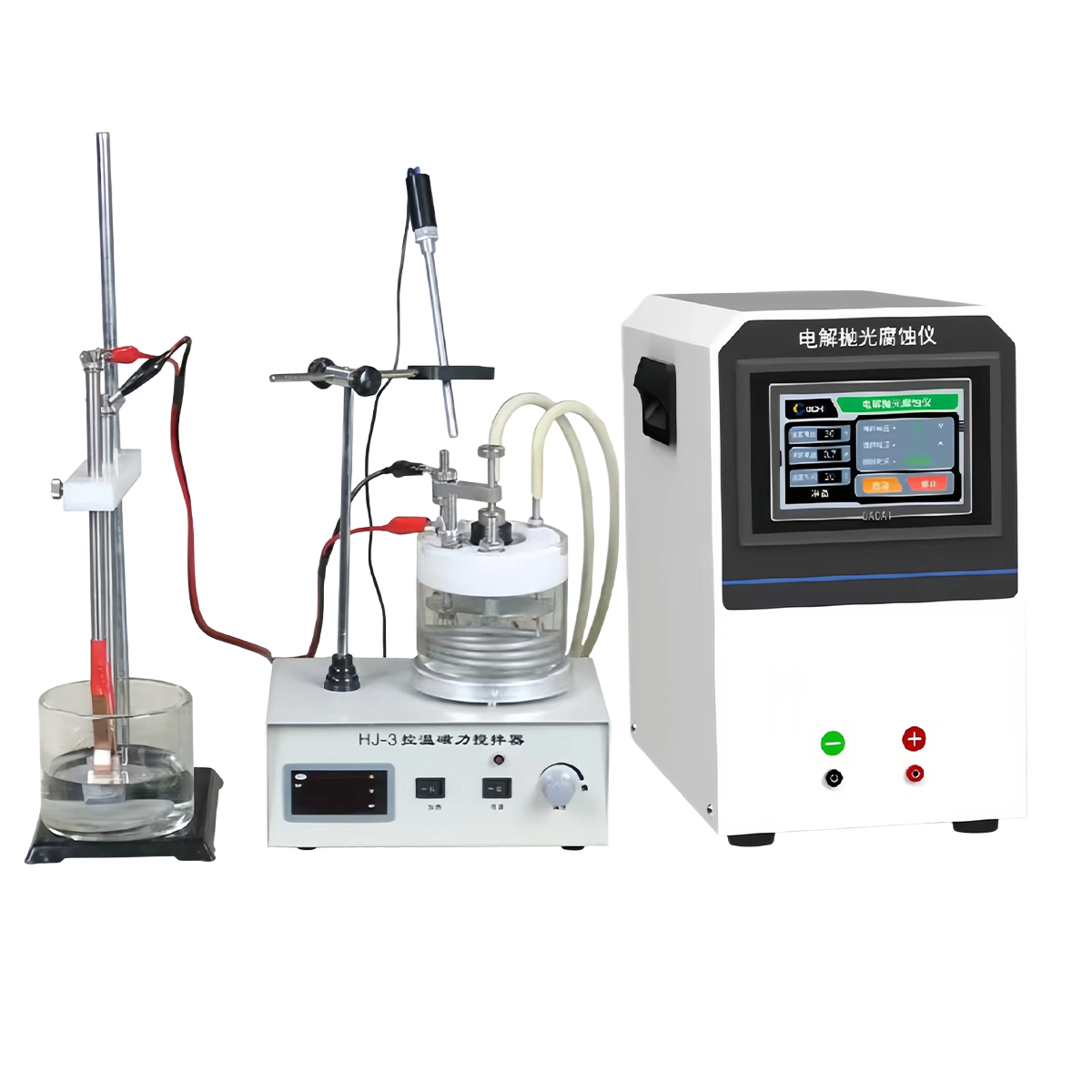

Electrolytic Polishing & Etching Instrument OC-EP06
Compact and stable electrolytic polishing and etching machine for metallographic samples, with touch control, high precision, timing function and uniform stirring.
The Electrolytic Polishing & Etching Instrument OC-EP06 is specially designed for metallographic sample preparation. It performs electrolytic polishing and etching to reveal clear microstructure of metal materials. With touch-screen control, high-precision voltage and current output, constant voltage / constant current working mode, precise time control and magnetic stirring system, it ensures stable and repeatable test results. It is widely used in material laboratories, quality inspection, metallurgy, aerospace and precision manufacturing.
2. Key Selling Points
- Touch-screen operation for simple and intuitive control
- High accuracy: voltage 2 decimal places, current 3 decimal places
- Wide voltage and current range for various materials
- Supports constant voltage and constant current working modes
- Coarse and fine adjustment for stable parameter setting
- Time control from 1 second to 99 minutes 59 seconds
- Magnetic stirring ensures uniform electrolyte
- Sample area control with different mask sizes
- Heating and cooling coil for electrolyte temperature control
- Complete overload protection for safe operation
3. Technical Parameters
| Item | Specification |
|---|---|
| Input voltage | AC220V 50Hz |
| Output voltage | 0~100V digital display, presettable |
| Output current | 0~6A digital display, overload protection |
| Total power | 800W |
| Time control | 1s – 99min59s |
| Electrode | Anode: sample; Cathode: stainless steel plate |
| Sample mask | Φ10mm, Φ15mm, Φ20mm |
| Tank capacity | 800mL |
| Heating range | Room temperature ~ 100°C |
| Cooling | Cooling coil (external water) |
| Stirrer size | 240×190×130mm |
| Control unit size | 350×300×200mm |
4. Applicable Materials
Stainless steel, carbon steel, alloy steel, aluminum alloy, copper alloy, titanium alloy, nickel‑based alloy, weldments, precision parts and other metal materials.
5. Standard Configuration
| No. | Configuration Content |
|---|---|
| 1 | OC-EP06 main unit |
| 2 | Electrolytic cell |
| 3 | Stainless steel cathode plate |
| 4 | Sample mask set (10/15/20mm) |
| 5 | Magnetic stirrer |
| 6 | Cooling coil |
| 7 | Power cable |
| 8 | Operation manual |
6. Optional Accessories
- Additional electrolytic cell
- Custom sample masks
- Circulating water chiller
- Special electrolyte
- Calibration certificate
7. Application Cases
- Metallographic laboratory: polishing and etching for steel and non-ferrous alloys
- Aerospace & automotive: microstructure analysis of precision components
- Weld inspection: etching for welding quality evaluation
- Research institute: material R&D and microstructure testing
