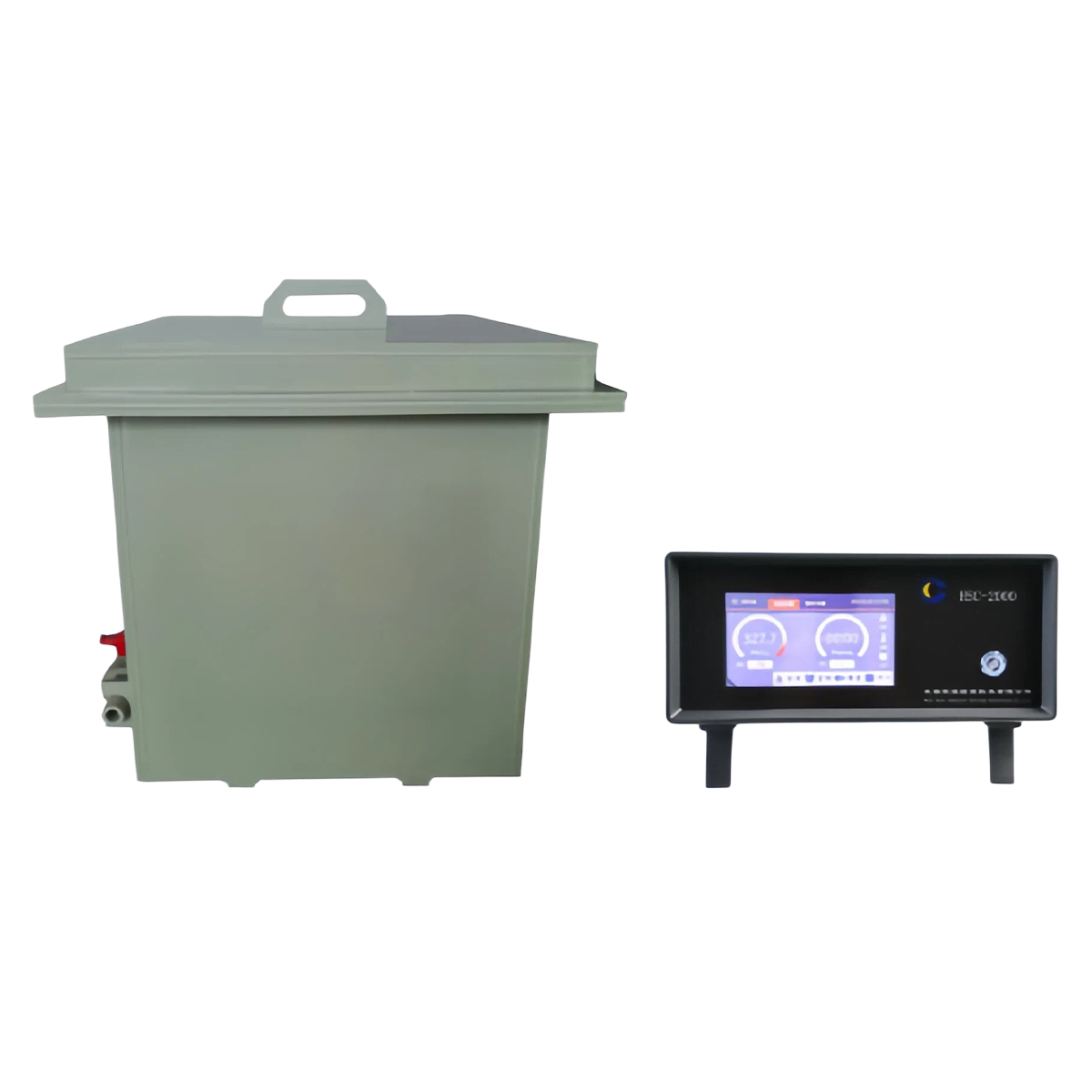

Macrostructure Hot Acid Etching Device HSC-2000
Intelligent hot acid etching equipment for macrostructure inspection of steel, alloy and metal materials, with PID temperature control, touch screen, closed anti‑corrosion tank and safe operation.
The Macrostructure Hot Acid Etching Device HSC-2000 is specially used for macrostructure display and defect inspection of metal materials such as steel, alloy, castings and forgings. It adopts computer and silicon controlled rectifier to realize full-process automatic control, with unique PID temperature control algorithm to ensure high etching repeatability and reduce human error. The control unit and etching tank are separated to prolong service life. The closed acid tank made of special acid‑resistant and high‑temperature resistant material effectively prevents acid fume volatilization and ensures operator safety. It is widely used in steel mills, foundries, quality inspection centers and material laboratories.
2. Key Selling Points
- PID precise temperature control, stable and uniform etching effect, good repeatability.
- Large touch screen control, intuitive operation, easy parameter setting.
- Control unit and etching tank separated design, longer service life.
- Closed anti‑corrosion etching tank, reduces acid fume volatilization, safer.
- Three‑layer sample placement design, large space, easy to take and place.
- With drain valve for easy waste liquid discharge.
- Removable sample tray, easy to clean.
- Timing and temperature control with buzzer reminder.
- Compact structure, compatible with fume hood.
- Size and power can be customized according to customer requirements.
3. Technical Parameters
| Item | Specification |
|---|---|
| Temperature control range | Room temperature ~ 100°C |
| Temperature accuracy | ±1°C |
| Timing range | 0 ~ 99 min |
| Alarm mode | Buzzer alarm |
| Control parts | Touch screen, microcontroller |
| Power supply | AC220V 50/60Hz |
| Heater power | 3kW (customizable) |
| Effective tank size | 400×400×250mm |
| Overall dimensions | 520×496×550mm |
| Operating temperature | 5 ~ 40°C |
| Operating humidity | 0 ~ 95%RH |
| Net weight | 30kg |
4. Applicable Materials
Carbon steel, alloy steel, cast iron, stainless steel, forgings, castings, pipes, profiles, welding parts and other metal materials for macrostructure defect inspection.
5. Standard Configuration
| No. | Configuration Content |
|---|---|
| 1 | HSC-2000 main unit 1 set |
| 2 | Control cabinet with touch screen 1 set |
| 3 | Closed acid‑resistant etching tank 1 set |
| 4 | Heating system 1 set |
| 5 | Removable sample tray 1 set |
| 6 | Drain valve assembly 1 set |
| 7 | Timing & alarm system |
| 8 | Power cable |
| 9 | Operation manual |
6. Optional Accessories
- Customized larger etching tank
- Acid fume treatment interface
- Circulating cooling system
- Acid‑resistant gloves and tools
- External fume hood
- Calibration certificate
7. Application Cases
- Steel mill inspection: Macrostructure etching for continuous casting billet, steel plate, profile and forging.
- Foundry testing: Inspection of shrinkage, porosity, segregation, crack and inclusion in casting.
- Pressure vessel & pipeline: Macrostructure analysis of welding joints and pipe materials.
- Laboratory research: Macrostructure preparation for material analysis and quality certification.
