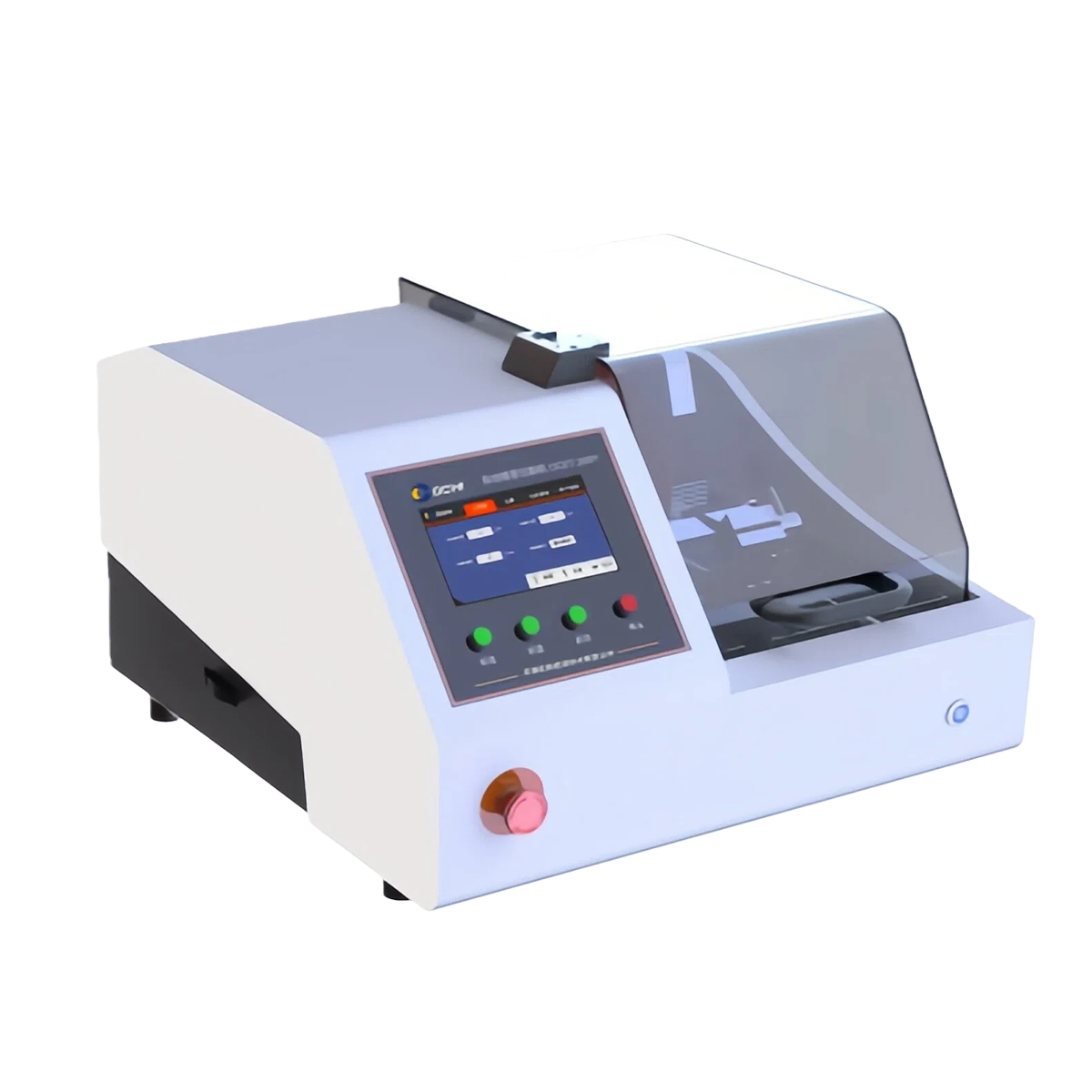

High-Speed Precision Cutting Machine OCUT-200Y
Compact bench-top high-speed precision cutter designed for micro, delicate, small-sized metallographic samples, achieving burr-free, thermal-damage-free and ultra-smooth cutting sections, ideal for precision sample preparation in laboratories.
The OCUT-200Y is a professional high-speed precision cutting machine specially developed for micro, delicate, fragile and small-volume metallographic sample preparation. Unlike conventional large cutting machines, this model focuses on ultra-precision cutting performance, equipped with a high-speed stable spindle and anti-vibration integrated body, which can effectively avoid sample deformation, edge chipping, burrs and thermal burning during the cutting process, ensuring the integrity of the sample internal structure and the flatness of the cutting surface.
Adopting a space-saving bench-top layout, it is specially designed for small laboratory spaces, precision testing rooms and micro sample processing scenarios. The fully enclosed transparent protective cover ensures operational safety while allowing real-time observation of the cutting process. With a built-in micro cooling system and precise feed control, it adapts to a wide range of small and precision materials, making it an essential equipment for high-precision metallographic analysis, material research and micro component detection.
2. Key Selling Points
-
High-Speed Precision Spindle: Built-in high-speed silent spindle with stable rotation, no runout during operation, achieving ultra-fine and clean cutting sections, completely eliminating burrs and thermal damage to samples.
-
Anti-Vibration Integrated Structure: Solid integrated frame design with effective shock absorption, ensuring stable cutting even at high speed, suitable for fragile, brittle and micro precision samples that are easy to damage.
-
Compact Bench-Top Size: Small footprint and lightweight body, easy to place on standard laboratory workbenches, perfect for small labs, testing rooms and teaching spaces with limited area.
-
Precision Manual Feed Control: Smooth and delicate feed handle, enabling micro-adjustment of feed speed, accurately matching the hardness and characteristics of different materials to achieve optimal cutting results.
-
Full Safety Protection: Fully enclosed transparent explosion-proof protective cover, equipped with door opening power-off linkage, emergency stop button and overload protection, fully safeguarding operator safety.
-
Targeted Micro Cooling: Special micro-flow cooling system, delivering targeted cooling to the cutting area, avoiding sample damage caused by excessive water flow while preventing thermal burning effectively.
-
Anti-Corrosion & Easy Maintenance: Stainless steel working platform and inner cavity, resistant to coolant corrosion, with smooth surface for quick cleaning of cutting residues and easy daily maintenance.
-
Low Noise Operation: Optimized motor and spindle design, running noise is greatly reduced, creating a quiet and comfortable laboratory working environment.
3. Technical Parameters
|
Item
|
Specification
|
|---|---|
|
Maximum Cutting Capacity
|
Φ30 mm (round sample); 40×30 mm (rectangular sample)
|
|
Cutting Blade Specification
|
Φ200 × 1.2 × 25.4 mm (thin high-speed precision blade)
|
|
Spindle Speed
|
3000 r/min (high-speed stable rotation)
|
|
Motor Power
|
0.8 kW
|
|
Workbench Stroke
|
120 mm
|
|
Feed Mode
|
Micro manual precision feed
|
|
Cooling Method
|
Micro-flow wet circulating cooling
|
|
Control Mode
|
Manual button control
|
|
Safety Devices
|
Enclosed protective cover, door opening shutdown, emergency stop, overload protection
|
|
Body Material
|
Integrated steel frame with stainless steel workbench
|
|
Power Supply
|
AC 220V 50Hz (universal laboratory voltage)
|
|
Overall Dimensions
|
Approx. 550×420×480 mm
|
|
Weight
|
Approx. 65 kg
|
4. Applicable Materials
-
Metallic Materials: Small precision parts, cemented carbide, thin metal sheets, non-ferrous metal micro samples, fasteners, small weldments, heat-treated micro components
-
Non-Metallic & Special Materials: Engineering plastics, bakelite, PCB micro-components, semiconductors, small ceramic pieces, crystals, composite materials, electronic precision parts
5. Standard Configuration
-
1 set of OCUT-200Y main machine
-
High-speed precision spindle & motor assembly
-
Micro manual feed handle assembly
-
Precision sample clamping fixture
-
Micro-flow circulating cooling system
-
Transparent enclosed protective cover
-
Emergency stop button assembly
-
Power cable
-
Operation manual & warranty card
6. Optional Accessories
-
Φ200mm high-speed thin precision cutting blades
-
Special micro-sample fixtures
-
Metallographic cutting coolant & anti-rust liquid
-
Mini adjustable vise
-
Spare sealing rings and vulnerable parts kit
7. Typical Applications
-
High-precision cutting of micro metallographic samples in material research laboratories
-
Sample preparation for electronic components and micro precision parts detection
-
Precision cutting of fragile and brittle materials in scientific research institutes
-
Teaching and experimental sample preparation in university material laboratories
-
Micro sampling for metallographic analysis and failure analysis
-
Small batch precision cutting in industrial quality control and inspection rooms
